How To Assemble Obi-Wan Kenobi Lightsaber.

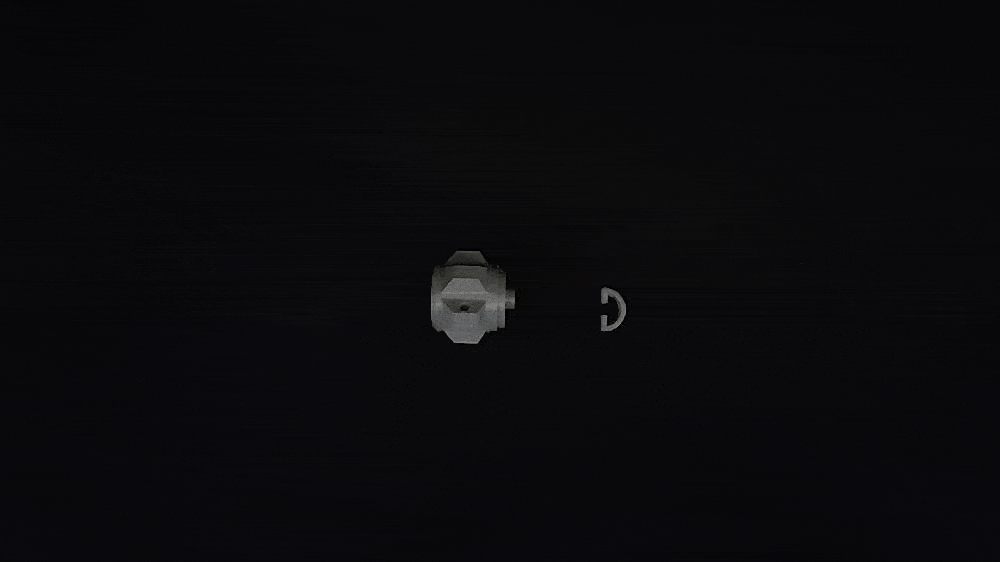

Step 1


Take the D shaped ring and a bottom of the saber. Locate the hole and bend the D ring into the hole like shown above.

Step 2


Now using epoxy or a hot glue attach the bottom of the saber to the middle body like shown above. All the parts have a guide hole and extrusion to help you align and centre the parts.

Step 3


Now take the assembled part of the saber and glue it to the ribbed middle part like shown above. For the strongest connection use Epoxy glue, but hot glue will work as well. Leave for the glue to set.

Step 4


Next take the fan looking part and glue it onto the main assembly like shown above. Leave the glue to set.

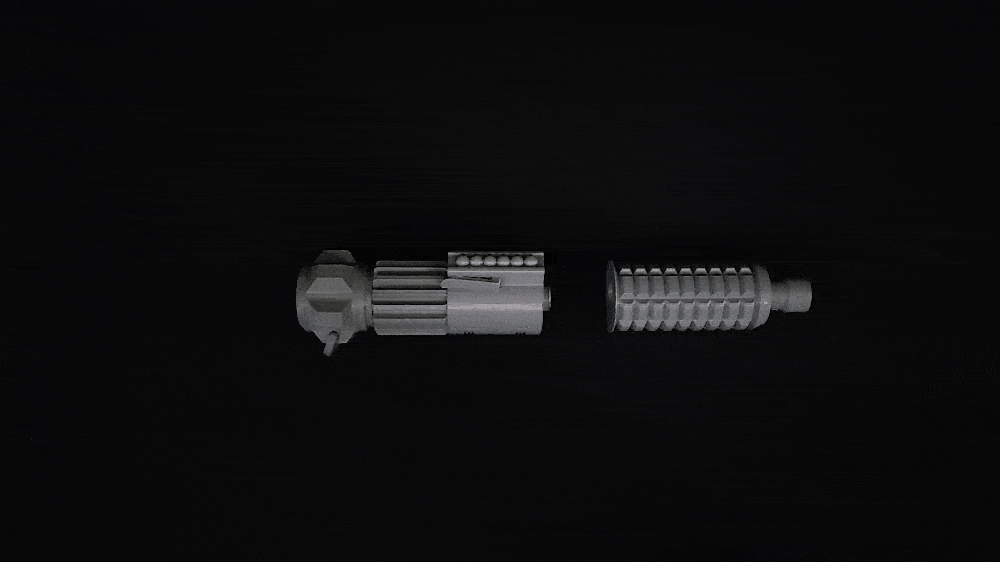

Step 5


Finally glue the top and the last part of the Lightsaber to the main assembly like shown above. LEave the glue to set. And there you have it. Your Obi-Wan Kenobi Lightsaber is ready. We advice you use Epoxy glue throughout the assembly as it is by far the strongest connector. Also worth noting that sanding and painting is easier before assembly.

Hope you like your new Obi-Wan Kenobi Lightsaber.
